ProVolver Setup EN test

You got your hand on a ProVolver. With this, you will increase your immersion while playing.
The ProVolver allows you to feel the handguns in your games. You can use it with one hand or with two hands with the front extension.

Setting up your ProVolver should take 10 to 20 minutes.

First, make sure you work in a clear area and be very careful. Some parts can get lost easily.

Parts list

....................................................................................................................................................................................................................................................................................

Content of the box

x1	x1	x1	x1	x1

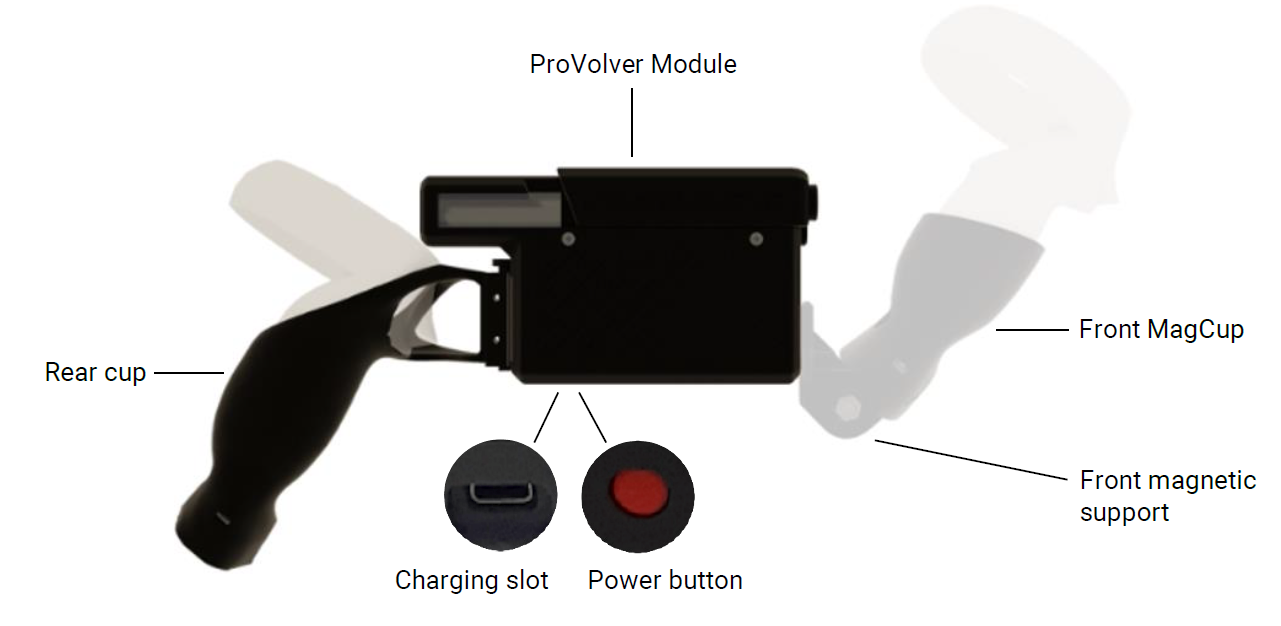

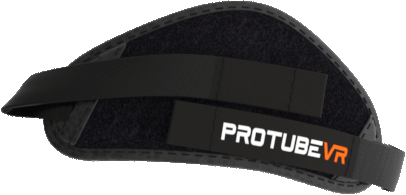

ProVolver haptic Module	ProVolver rear controller mount (cup)	ProStrap	Charging cable USB to USB-C	USB Bluetooth dongle

If you took the front extension

x1	x2	x1	x1

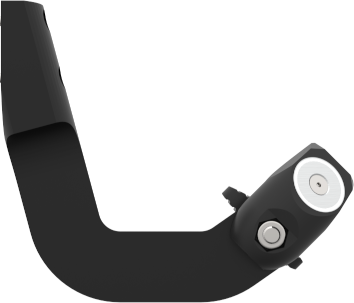

Front magnetic bracket	M4x12 screw	Controller mount (cup)	ProStrap

	Tool bag

	x1	x1
	Hex Key 0,4cm	Hex Key 0,25cm

Step 1: Slot the controller into the rear cup

________________________________________________________________________________________________________________________________________________

For Quest

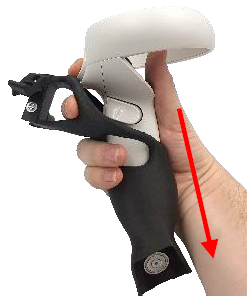

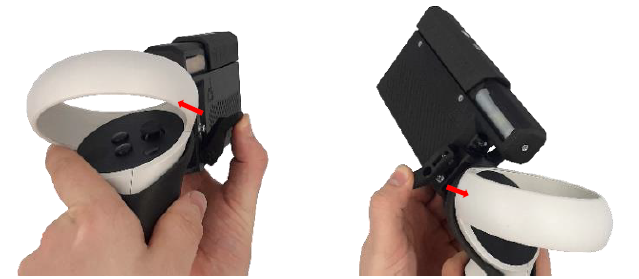

	Slide the controller into the Cup. If you chose the right-handed version, put the right controller in and vice versa.
	For Rift S, Quest 1, 2, 3, 3S & Pro, you need to press the trigger to introduce and remove the controller from the cup.

For Valve Index
	Detach the strap’s string from the controller and put the cup into the controller’s handle, like shown in the picture above.
	Just clip the controller in the cup and put back the strap’s string through the cup and controller.

Step 2: Attach the Main cup to the ProVolver

________________________________________________________________________________________________________________________________________________

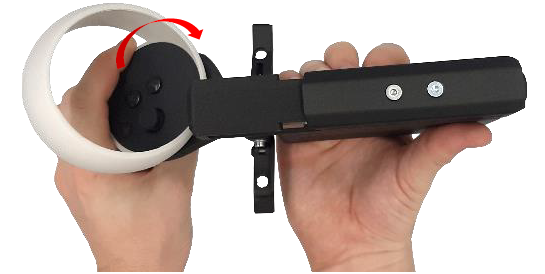

Make sure the clamps are loosened (see picture above). Place one side of the female rail on the male rail.	Then clip the other side of the female rail (it can be a little tricky at first since the piece is not shaped yet).

Clip the first clamp. Use the provided Allen key to loosen the screw and adjust the tightness.
Do the same on the other side to lock the module.

If you got the ProVolver for Valve Index, there will be a magnetic add-on provided. You will need it only if you choose to use it with a gunstock or with a stock extension. You can fix it forward or backward or in the middle, as you prefer.

Note: if you install it before trying to fit the controller in, you will not be able to. Neither will you be able to remove it.
You will need to remove the magnetic part beforehand.

Congratulations! Your ProVolver is now ready to use.

If you use your ProVolver single-handedly, you can refer to the Haptic documentation to connect it to your wireless Headset or PC.

If you took the front magnetic bracket in option to use the ProVolver as a two-handed weapon, keep following this tutorial.

(note to Tao: pay attention to each image in this section, none of the red indicators are present)

Step 3: Attach the front extension

________________________________________________________________________________________________________________________________________________

	For this last step, you will need the front magnetic bracket and both M4x12 screws.

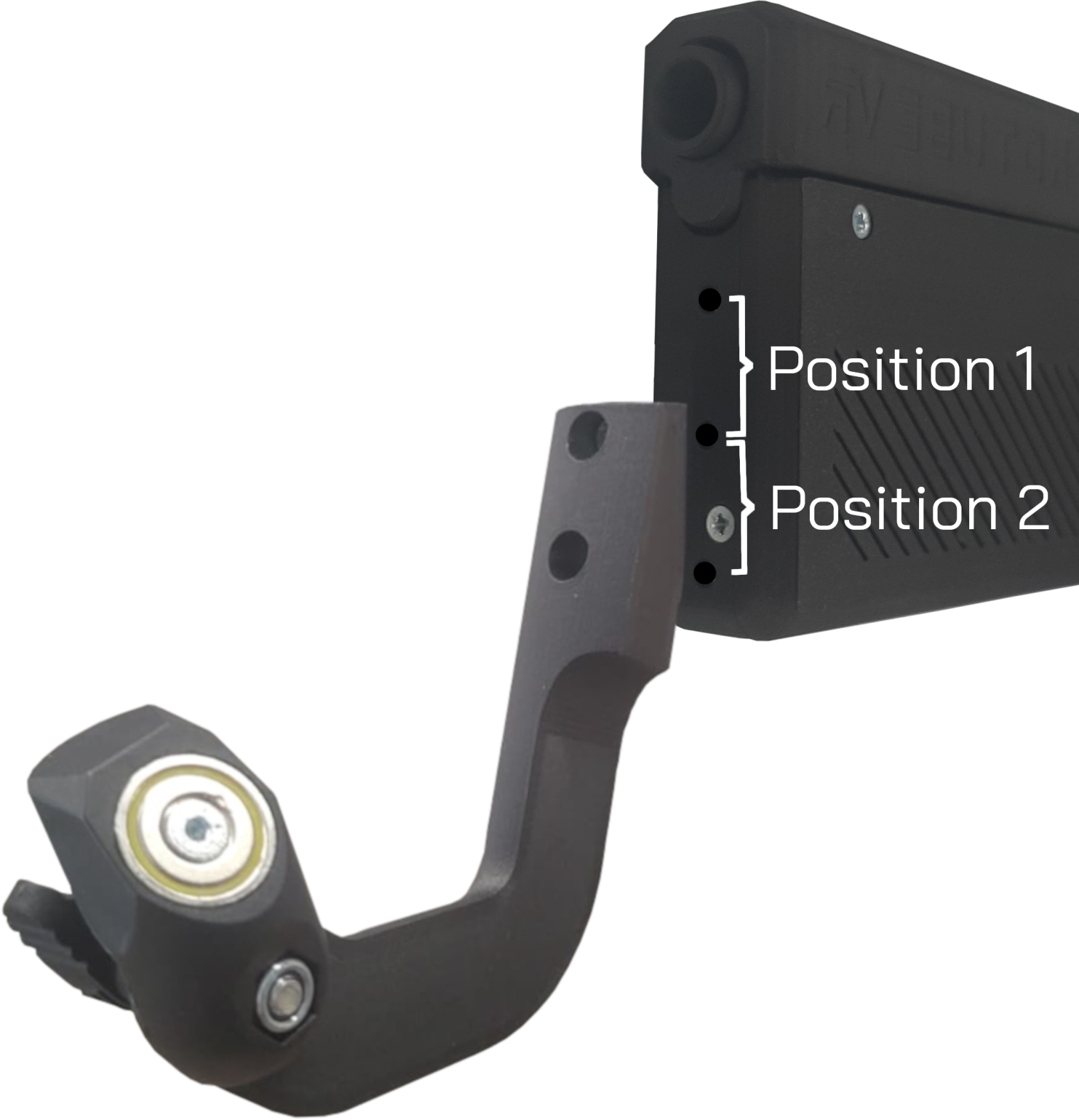

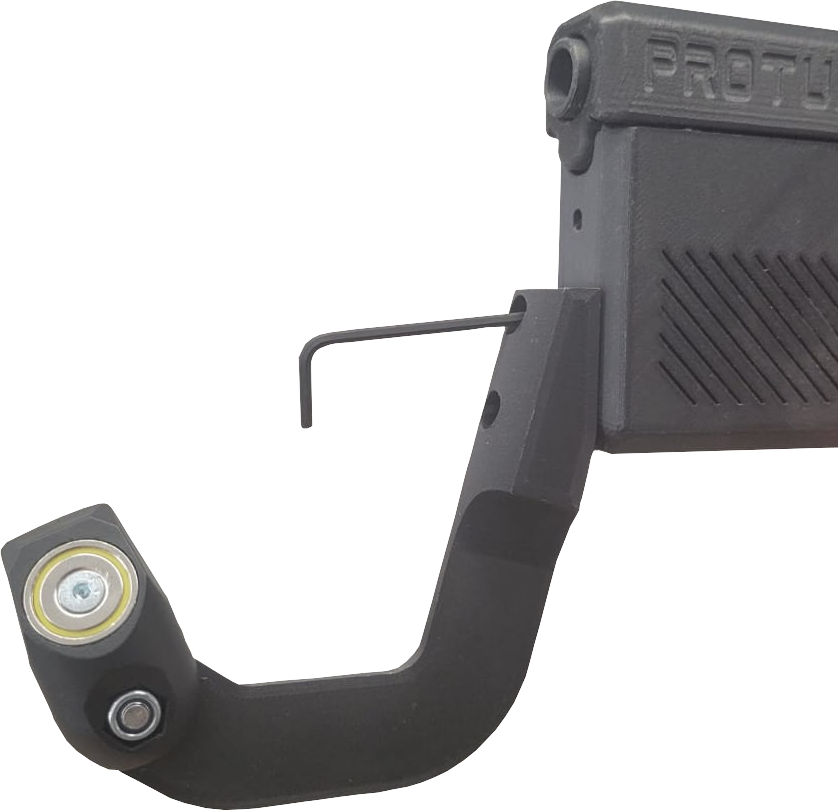

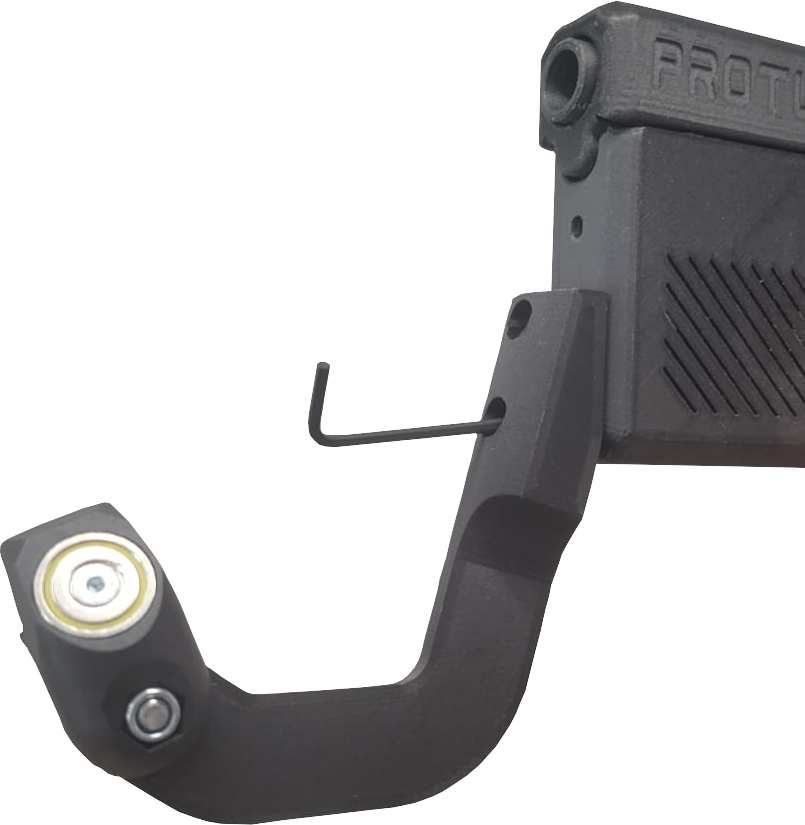

You can place the bracket on either position 1 (higher) or position 2 (lower) as shown above depending on your appreciation.	Screw it in place using the smaller Allen key and both screws.

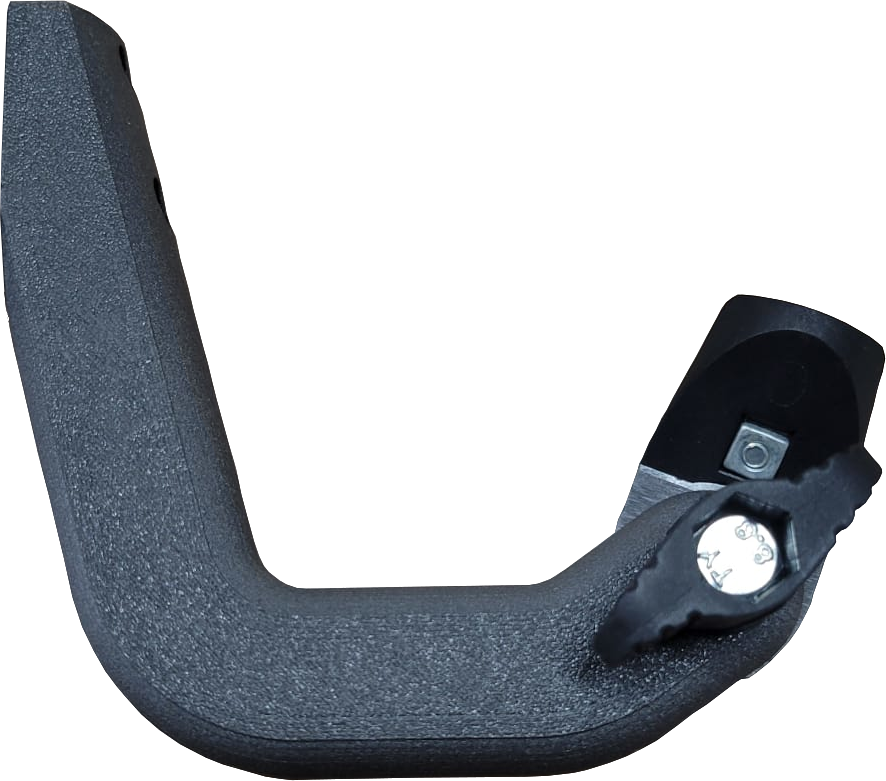

Put the front cup on the Magnetic support.	Loosen the thumbscrew to adjust it. Slot the controller in the cup. Adjust your front hand in game and tighten the screw back.
