UPGRADE PROTUBE TO MAGTUBE

Hello, fellow gamer!

If you are reading this, you are willing to upgrade your ProTube to the magnetic version, the MagTube. And increase your comfort while playing. We will help you to do it!

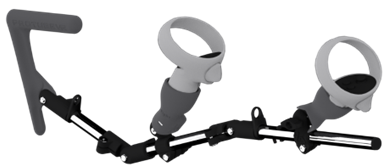

The MagTube allows you to detach the controllers (and its MagCups) from the frame without having to take the controllers off the cups.

We invite you to join our Discord community for any questions or directly contact us through our support service on our website.

Upgrading your ProTube to a MagTube should take 10 minutes.

For video setup, you can check our YouTube Playlist.

First, make sure you work in a clear area and be very careful. Some parts can get lost easily.

Thank you for choosing the best Virtual Reality stock rifle solution. But do not trust us by word, try it. And most importantly, enjoy your games!

PARTS LIST

________________________________________________________________________________________________________________________________________________

Upgrade Parts Tools

....................................................................................................................................................................................................................................................................................

x2 x1 x1 x1 x1

Right & Left controller holders Notched magnetic support Smooth Bracket Hex Key 4mm Hex Key 2,5mm

Step 1: dismantle the fixed cups

________________________________________________________________________________________________________________________________________________

You need to remove the fix cups on your ProTube using the provided larger Allen key.

Make sure to keep all screws and bolts.

STEP 2: THE REAR MAGCUP

________________________________________________________________________________________________________________________________________________

What you need for the rear MagCup (medium tube):

20 mm screw

1 nut

2 O-rings

Notched magnetic support

Magnetic cup

Put the O-ring on the 20mm screw.

Pass the screw and O-ring through the notched magnetic support.

Join the notched magnetic support and the T-notched connection and add the second
O-ring.

Add the nut and tighten, the magnetic support must be able to move though.

STEP 3: THE FRONT MAGCUP

________________________________________________________________________________________________________________________________________________

What you need for the front MagCup (longer tube):

Smooth magnetic bracket

Magnetic cup

Remove the old smooth 3D printed T-connection from the front longer tube. Replace it with the new magnetic bracket.
The magnet must face the other way to the rear magnetic bracket
(ex: to the left if you are right-handed).

You can now install your new magnetic controller holders (MagCups).

Congrats, you have a complete MagTube.
